Facilities

We are having 5400 Square Feet area in industrial zone of Rajkot

80+ team of highly qualified & skilled personal

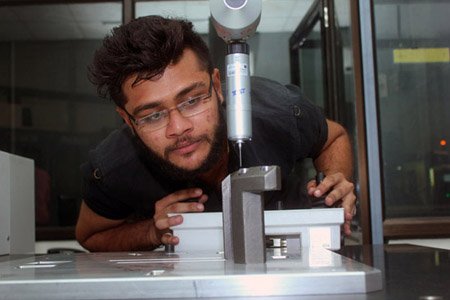

Main Measuring Instrument

  1. CMM - ZEISS SPECTRUM : 700x1000x600

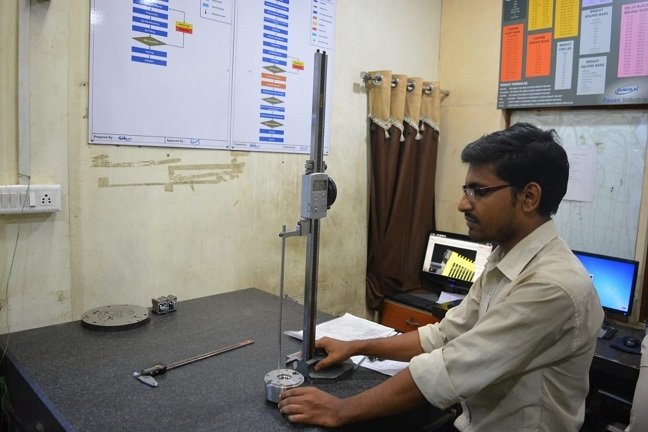

  2. Height Gauge(Baker) : 0-600 mm Range
  3. Digital Vernier(mitutoyo) : 0-300 mm
  4. Vernier Caliper(aerospace) : 0-600 mm
  5. Micrometer(yuri) : 400-500 mm
  6. Bore Gauge(mitutoyo) : 50-150 mm range
  7. Slip Gauge set (precise) : 0.5-100 mm (83 Nos)

Software & Hardware

  1. SolidWorks Inspection Professional 2020
  2. CAD Software - Solid Edge
  3. CAM Software - Unigraphics NX 8.5
  4. ERP Software for internal use

Machinery List

VMC
Sr. No Maker X Travel Y Travel Z Travel No of Machine
1 JYOTI-1260 WITH ROTARY 1220 mm 580 mm 600 mm 1
2 JYOTI-850 800 mm 500 mm 500 mm 1
3 ACE-MCV450 800 mm 450 mm 500 mm 1
4 ACE-MCV450 2-PALLET 800 mm 450 mm 500 mm 1
5 COSMOS VMC 1060 1000 mm 600 mm 600 mm 2
6 COSMOS VMC 1060 WITH ROTARY 1000 mm 600 mm 600 mm 2
CNC
Sr. No Maker Diameter Length Bar Capacity No of Machine
1 ACE, JOBBER XL 400 mm 400 mm 38 mm 8
2 ACE, LT20XL 500 mm 700 mm 63 mm 4
3 ACE, VTL 30/700 500 mm 700 mm 1
4 ACE, VTL 30/500 500 mm 500 mm 1
Spark Erosion Machine
Sr. No Maker X Travel Y Travel Z Travel No of Machine
1 SPARKONIX-S50 PLUS 500 mm 300 mm 300 mm 2
CMM
Sr. No Maker X Travel Y Travel Z Travel No of Machine
1 ZEISS SPECTRUM II 700 mm 1000 mm 600 mm 1
2 Try Measured 2 meter 1 meter 1 meter 1
Balancing Machine
Sr. No Maker Weight of Job Max. Diameter Max. Length No of Machine
1 KRYSTAL-KHB-50 2-50 Kg Ø 500 mm 1200 mm 1
2 KRYSTAL-KHV-100 100 Kg Ø 600 mm 1
Conventional Machine and General Machinery
Sr. No Description No of Machine
1 TOOL ROOM LATHA 3
2 TOOL ROOM DRILL 6
3 TAPPING DRILL 1
4 MILLING MACHINE 1
Laser Marking Machine
Sr. No Maker No of Machine
1 STAR LASER TECHNOLOGY 1
Hydro Pressure Testing Machine
Sr. No Maker No of Machine
1 FERO ENGINEERING 1
